Features:

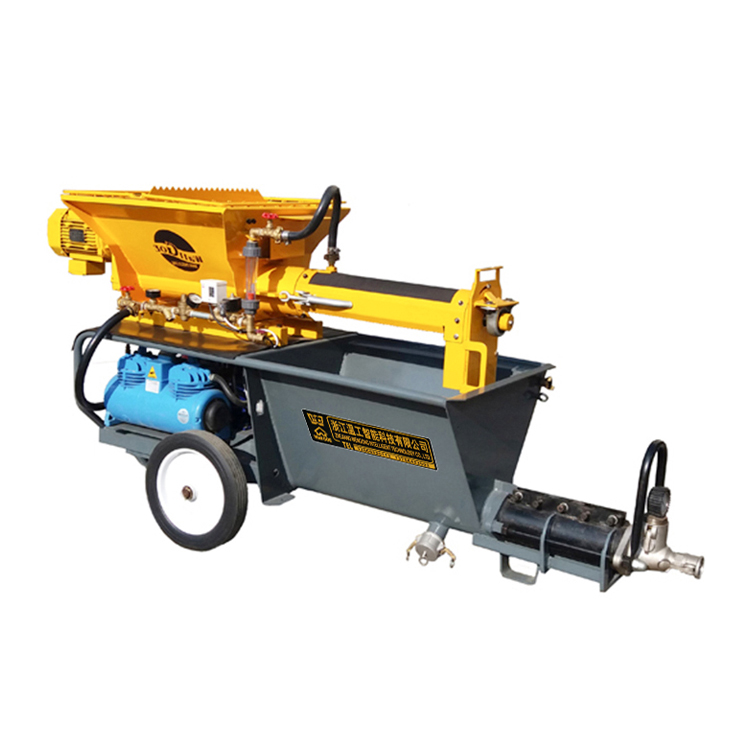

The JPW series continuous mortar mixing pump spraying unit, compared with the JPL and GPZ series models, has the core structural difference of adopting an integrated design of uninterrupted continuous mixing mixer and mortar pump spraying machine to achieve continuous operation.
The unit is equipped with stabilizing metering, automatic water supply, automatic quantitative feeding, and mixing and stirring mechanisms; The mixing chamber is divided into dry and wet mortar isolation areas, equipped with modular dual axis continuous mixing blades. Different from the segmented operation mode of intermittent mixers, this machine can continuously complete material mixing and continuously deliver materials to the pump spraying host.
The integrated design of the mixing shaft and transmission shaft relies on digital tools such as 3D modeling, fluid dynamics simulation, and finite element stress analysis to optimize the structure of the mixing conveying and mixing main shaft. The bidirectional spiral continuous mixing structure promotes thorough mixing of materials in the chamber, significantly improving operational efficiency compared to intermittent mixing equipment.
The whole machine adopts a modular structure, making disassembly and transportation convenient; It can meet the continuous mixing, blending, and pumping construction operations of ordinary mortar, polymer mortar, and special mortar.
Technical Parameters:

Model		JPW50	JPW60	JPW70
Rotor stator assembly		GL50（M188）	GL60（2L6）	GL70(IM25)
Output		50L/min	60L/min	70L/min
Delivery pressure		30bar	30bar	30bar
Horizontal conevying distance		60m	60m	60m
Vertical conveying distance		40m	40m	40m
Motor power		4.5/5.5 KW	4.5/5.5 KW	4.5/5.5 KW
Size	L	1950mm	2210mm	2050mm
	W	680mm	680mm	680mm
	H	108mm	1080mm	1080mm
Net weight		320KG	350KG	350KG
Adaptive components		Double layer steel wire wrapped rubber slurry pipe Φ50mm、Φ38mm、Φ32mm、Φ25mm， Air compressor, available with a Φ 13mm air supply pipe.
