Features:

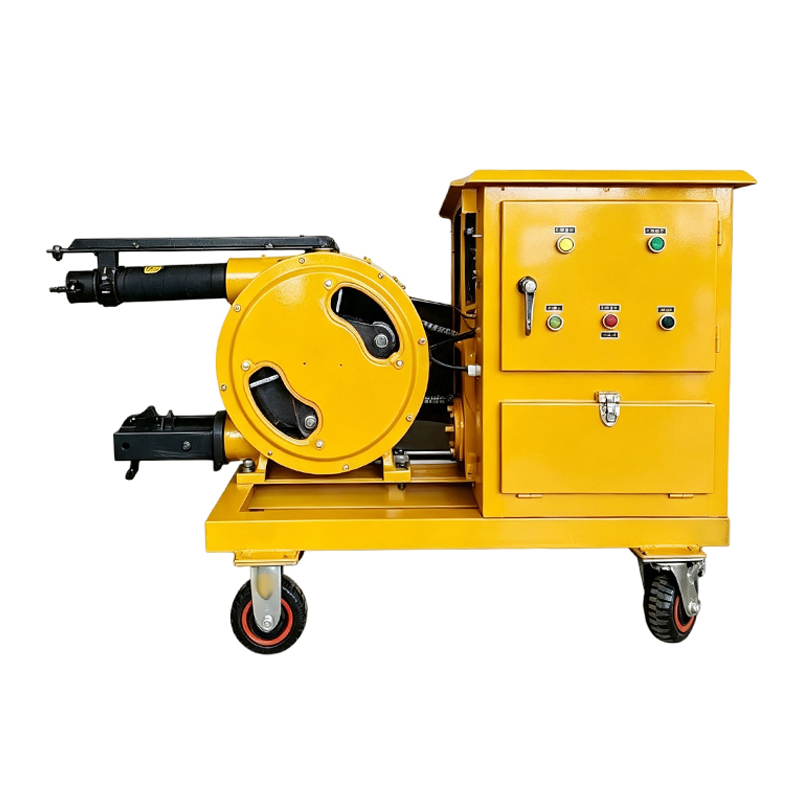

The UBJ1.8 extruded mortar pump has a compact structure, low operating cost, and outstanding overall cost-effectiveness. Support displacement, pressure, and speed adjustment, and configure remote control mechanism.
It can transport, spray fireproof mortar, plastering mortar, gypsum mortar, bonding mortar, masonry mortar, reinforcement mortar, filling mortar, grouting mortar, insulation mortar, fiber mortar, self leveling mortar, repair and reinforcement mortar and other materials.
Suitable for surface spraying and pressure grouting operations in tunnels, steel structures, bridges, road traffic, water conservancy, and power engineering projects.
The whole machine comes standard with a pumping system, vibrating screen, and hopper system; The gas supply system and mixing system are optional configurations.

Technical Parameters:

Model		UBJ1.8
Output		0.4/0.6/1.2/1.8 m3/h
Delivery pressure		1.5Mpa
Squeeze tube inner diameter		38mm
Inner diameter of conveying pipe		32/38mm
Main motor power		2.2/2.8kw
Hopper volume		200L
Size	L	1270mm
	W	896mm
	H	990mm
Net weight		270kg
Adaptive components		Double layer steel wire wrapped rubber slurry pipe Φ38mm、Φ32mm、Φ25mm，Φ13mm Options for gas pipelines.
