Features:

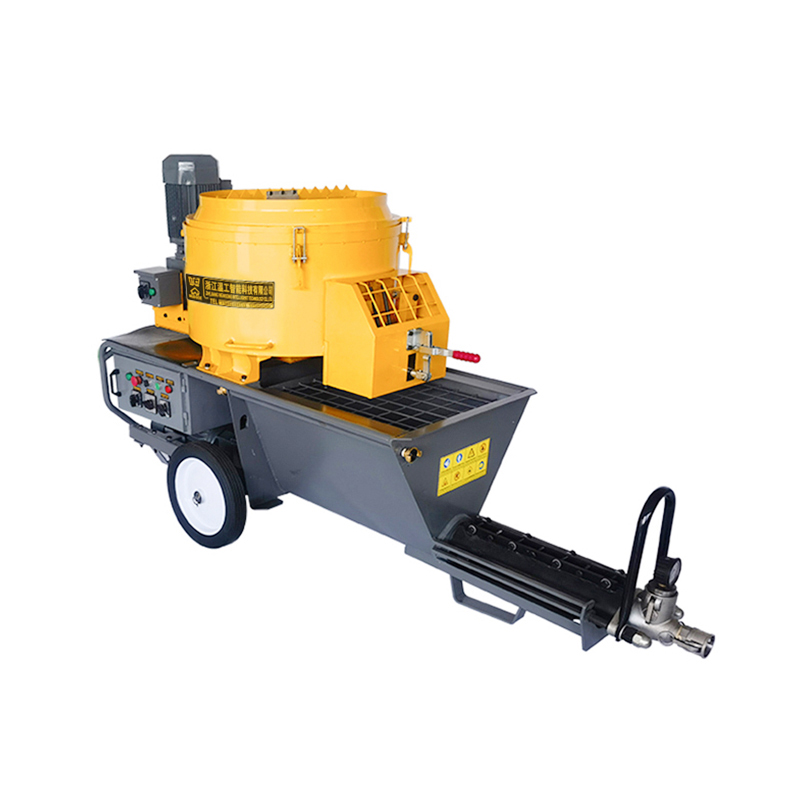

The JPL series polymer mortar spraying machine, relying on advanced equipment technology from Europe and America, has carried out domestic independent iterative research and development. It has achieved multiple technological breakthroughs in the field of mortar repair for municipal drainage pipeline lining and holds multiple national patents. It is a high-efficiency and energy-saving spraying equipment specifically designed for well repair, suitable for spraying and repairing polymer mortar lining for municipal drainage pipelines, inspection wells, and well chambers. It can be adapted to the construction of various sizes of well chambers and drainage pipelines.

Core advantages of the product:

1、 Lightweight and low body
Optimize the overall height of the machine, reduce the feeding drop by 100mm compared to similar models, reduce the loading load on workers, improve work efficiency by 25%, make the machine lightweight, and make site transitions flexible and convenient.
2、 Variable frequency stepless adjustment, strong adaptability to working conditions
Equipped with a frequency conversion speed control system, the pumping pressure and discharge capacity can be infinitely adjusted according to the mortar consistency and material characteristics, compatible with multiple ratios of polymer repair mortar, to cope with various complex on-site working conditions.
3、 High wear-resistant pump core components, easy to maintain
Special sealing structure to reduce component loss caused by material leakage; The rotor stator clutch disassembly mechanism simplifies daily maintenance. The stator liner is customized with high proportion natural rubber, which has a 30% increase in wear resistance compared to traditional accessories, and can withstand the harsh working conditions of pipeline repair mortar.
4、 Digitally optimized mixing, high mixing quality
The mixing system is optimized through 3D modeling, fluid dynamics simulation, finite element stress analysis, and combined with irregular inner curved mixing blades to form radial and axial composite material flow, expand the contact area of material mixing, and achieve sufficient and uniform mortar mixing.
5、 Easy to clean and maintain, supports on-site maintenance
Improve the unloading structure, broaden the maintenance operation space, and make discharging, clearing residual materials, and cleaning and maintenance of the entire machine simple and efficient; Equipped with pressure sensing remote control, screw pump wear-resistant limit control system, matched with expansion and contraction adjustment, rotor stator slide quick disassembly mechanism, the pump core can be disassembled and assembled on the construction site, solving the problem of field maintenance.
Technical Parameters:

Model		JPL-50	JPL-60	JPL-80	JPL-90
Rotor stator assembly		GL（M188）	GL60（2L6）	GL80(UE355)	GL90（550※120）
Output		5-30L/min	40L/min	50L/min	60L/min
Delivery pressure		30bar	30bar	30bar	30bar
Horizontal conevying distance		60m	60m	80m	80m
Vertical conveying distance		40m	40m	40m	40m
Motor power		4KW	4.5/5.5KW	6.5/8 KW	6.5/8 KW
Size	L	1740mm	2180mm	2180mm	2280mm
	W	770mm	770mm	770mm	770mm
	H	1310mm	1310mm	1310mm	1310mm
Net weight		335kg	370kg	400kg	400kg
Adaptive components		Double layer steel wire wrapped rubber slurry pipe Φ50mm、Φ38mm、Φ32mm、Φ25mm， Air compressor, Φ13mm Options for gas pipelines.
